Marine paint application is a critical process for ensuring the longevity and performance of vessels and structures exposed to harsh marine environments. Proper application techniques can prevent corrosion, fouling, and other damages, ultimately saving time and money on repairs and maintenance.
Surface preparation is a critical step in ensuring the longevity and effectiveness of marine paint. Begin by thoroughly cleaning the surface to remove any dirt, grease, or existing paint using appropriate cleaners and degreasers. For stubborn residues, use a pressure washer. Once clean, inspect the surface for any signs of rust or damage, which must be addressed before painting.
Sandblasting or mechanical abrasion may be required to create a rough profile that promotes better paint adhesion, especially on metal surfaces. For fiberglass or wooden surfaces, sanding with the right grit sandpaper is essential to achieve a smooth yet receptive finish. Finally, apply a suitable primer to seal the surface and enhance the adhesion of the subsequent paint layers. Proper surface preparation ensures that the marine paint adheres well and provides the desired protection and aesthetics.
This guide will walk you through the step-by-step process of applying various types of marine paint and coatings, ensuring a professional finish and long-lasting protection.
Step-by-step guides on applying various types of marine paint
1. Preparation
Preparation is key to a successful marine paint application. The right tools and materials are essential to achieve the desired results. Common tools and materials needed include:
Paint brushes and rollers
Sandpaper and sanding blocks
Cleaning solvents
Primers
Personal protective equipment (PPE)
Surface Cleaning and Preparation
2. Cleaning the Surface
Before applying any paint, it is crucial to thoroughly clean the surface to remove dirt, grease, and salt deposits. Use a suitable cleaning solvent to ensure the surface is free from contaminants that could affect paint adhesion.
3. Sanding and Abrasion
Proper sanding is necessary to create a smooth surface for paint application. Use appropriate sanding tools and techniques to achieve a uniform texture. This step helps in removing any old paint or rust and ensures better primer adhesion.
4. Priming the Surface
Applying a primer is essential for better paint adhesion and corrosion protection. Choose the right primer based on the type of marine paint you are using. Follow the manufacturer’s instructions for mixing and application.
Applying Different Types of Marine Paint
Epoxy Primers
Epoxy primers provide excellent adhesion and corrosion resistance. To apply, mix the components as per the manufacturer’s instructions and apply using a brush, roller, or spray equipment. Ensure even coverage and allow the primer to dry and cure as recommended.
Antifouling Paints
Antifouling paints prevent marine organisms from adhering to the hull. Apply the paint in well-ventilated areas and use protective gear. Follow the application techniques provided by the manufacturer, ensuring even coats to avoid missed spots.
Topside Paints
Topside paints are designed for areas above the waterline. They provide a smooth, glossy finish and UV protection. Choose between single-part and two-part polyurethanes based on your needs. Apply in thin, even coats to avoid drips and runs.
Deck Paints
Deck paints often include non-skid additives to provide a safe walking surface. Mix the non-skid additive into the paint as per the instructions and apply evenly. Multiple thin coats help achieve a consistent texture and coverage.
Bilge Paints
Bilge areas require durable paints that can withstand moisture and oil exposure. Clean and prepare the surface thoroughly before application. Apply the bilge paint in thin, even coats, allowing sufficient drying time between coats.
Learn more on our marine coating services
Techniques for Achieving a Professional Finish
Apply multiple thin coats rather than a single thick coat to avoid runs and ensure even coverage.
Use high-quality brushes and rollers to achieve a smooth finish.
Follow the manufacturer’s instructions for drying and curing times to avoid premature wear and damage.
Environmental and Safety Considerations
1. Proper Ventilation
Ensure good ventilation when applying marine paint to avoid inhaling fumes. Use fans or apply paint in open areas when possible.
2. Personal Protective Equipment (PPE)
Always wear appropriate PPE, including gloves, masks, and goggles, to protect against chemical exposure.
3. Disposal of Paint and Cleaning Materials
Dispose of paint waste and cleaning solvents according to local environmental regulations to minimize impact on the environment.
4. Environmental Regulations and Compliance
Stay informed about regulations governing the use of marine paints in your region. Choose environmentally friendly options whenever possible.
Maintenance of Applied Marine Paint
Routine Maintenance Tips
Regularly inspect painted surfaces for signs of wear and damage. Clean surfaces with appropriate solvents to remove dirt and salt deposits.
Identifying and Addressing Wear and Damage
Look for blisters, peeling, and other signs of paint failure. Promptly address these issues by cleaning, sanding, and reapplying paint as necessary.
Re-coating and Touch-ups
Follow the manufacturer’s recommendations for re-coating intervals. Use compatible paints and primers for touch-ups to ensure a seamless finish.
Application of Specific Marine Paints

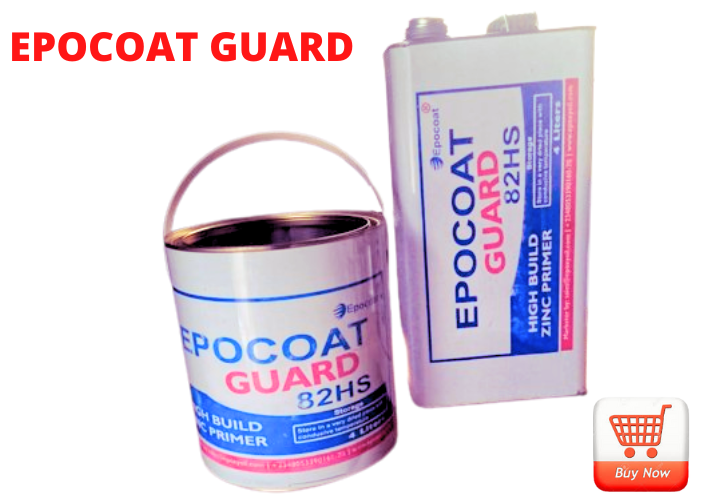

1. Epocoat Guard 82 HS (High Build Zinc Primer)
Epocoat Guard 82 HS is a high-performance zinc-rich epoxy primer ideal for protecting steel in aggressive environments. To apply:
Mixing: Combine the two components according to the manufacturer’s instructions.
Surface Preparation: Ensure the steel surface is clean and free of contaminants. Sand or blast the surface to achieve a suitable profile.
Application: Apply the primer using a brush, roller, or airless spray. Aim for an even coat, ensuring approximately 92% zinc dust in the dry film for optimal protection.
Drying and Curing: Allow the primer to dry at temperatures down to -10 degrees. Follow the recommended curing times before applying additional coats or topcoats.
2. Epocoat Build 150 (High Build High Solid Epoxy Mastic Coating)
Epocoat Build 150 is a versatile epoxy mastic coating designed for areas with less-than-ideal surface preparation. To apply:
Mixing: Prepare the two components as per the instructions.
Surface Preparation: Clean the surface to remove oil, dirt, and rust. This product is surface tolerant, but better preparation ensures superior results.
Application: Use airless spray equipment for large areas or a brush/roller for small sections. Apply the coating evenly, ensuring proper thickness.
Drying and Curing: Allow the coating to dry to touch in about 30 minutes at 30°C. The full cure period is 7 days.
3. Epocoat Hardtop GX (High Solid Aliphatic Polyurethane Marine Paint)
Epocoat Hardtop GX offers excellent weather resistance and gloss retention. To apply:
Mixing: Combine the two components thoroughly.
Surface Preparation: Clean and sand the surface to ensure proper adhesion.
Application: Use airless spray for best results, or a brush/roller for smaller areas. Apply in even coats, maintaining the recommended thinner ratio.
Drying and Curing: The paint dries to touch in about 1 hour at 30°C, with a full cure period of 7 days.
4. Epocoat Alkyd Gloss
Epocoat Alkyd Gloss is a high-quality, full-gloss paint suitable for both interior and exterior surfaces. To apply:
Mixing: This is a single-component paint, so stir thoroughly before use.
Surface Preparation: Clean and sand the surface to ensure it is free of dust and grease.
Application: Apply using a brush or roller, aiming for an even and consistent finish.
Drying and Curing: Allow the surface to dry for about 4 hours and hard dry in 24 hours.
Common Pitfalls when painting and How to Avoid Them
1. Avoiding Uneven Coverage
Apply multiple thin coats rather than one thick coat. This ensures even coverage and reduces the risk of runs and sags.
2. Preventing Paint Bubbles
Ensure the surface is completely clean and dry before painting. Use proper application techniques to avoid trapping air bubbles.
3. Ensuring Proper Adhesion
Adequate surface preparation, including cleaning and sanding, is critical for good adhesion. Follow primer application instructions carefully.
Professional vs. DIY Painting
Advantages of DIY Painting
DIY painting can be cost-effective and allows for personal control over the project. With proper guidance, even non-professionals can achieve satisfactory results.
Benefits of Hiring Professionals
Professionals bring expertise, experience, and specialized equipment to the project, often resulting in a superior finish. They are also adept at handling complex and large-scale projects.
Cost Comparison
DIY painting typically incurs lower labor costs but may require more time and effort. Professional painting services might be more expensive but offer higher quality and efficiency.
Time and Skill Considerations
Assess your skill level and the complexity of the project before deciding. DIY projects are suitable for those with some painting experience and smaller-scale tasks, while professionals are better suited for larger and more intricate jobs.
Choosing the Right Paint for Your Project
When selecting marine paint, consider the type of surface, environmental conditions, and desired durability. Assess whether the surface is above or below the waterline, exposed to saltwater, or subject to intense UV radiation.
Matching Paint Types to Applications
1.Antifouling Paints: Best for underwater hulls to prevent marine organism growth.
2.Topside Paints: Ideal for areas above the waterline, offering protection from UV rays and weather.
3.Deck Paints: Designed for high-traffic areas, providing slip resistance and durability.
4.Bilge Paints: Suitable for areas prone to oil and grease, offering easy cleaning and maintenance.
5. Epoxy Primers: Essential for corrosion protection and ensuring topcoat adhesion.
6. Barrier Coats: Used to prevent water absorption and protect against osmotic blistering.
Maintenance Tips to Prolong Marine Paint Life
Regular Cleaning and Inspection
Clean painted surfaces regularly to remove salt, dirt, and grime. Inspect for signs of wear or damage and address issues promptly.
Touch-Up and Repair
For minor scratches or chips, perform touch-up painting to prevent corrosion. Follow the same application procedures as the initial painting.
Repainting Schedule
Develop a maintenance schedule based on environmental exposure and paint type. Repaint as needed to maintain protection and aesthetics.
Safety Protocols for Handling and Applying Marine Paints
Personal Protective Equipment (PPE)
Always wear appropriate PPE, including gloves, masks, goggles, and protective clothing, to minimize exposure to harmful chemicals.
Ventilation
Ensure adequate ventilation in confined spaces to prevent the buildup of toxic fumes. Use fans and exhaust systems to improve airflow.
Proper Disposal
Dispose of paint waste and solvents according to local regulations. Do not pour them down drains or into the environment.
Environmental Impact and Regulations
Eco-Friendly Options
Consider using eco-friendly marine paints that minimize environmental harm. Look for paints that are free of harmful biocides and VOCs.
Regulatory Compliance
Ensure compliance with local and international regulations governing marine paint use. Stay informed about changes in legislation and standards.
Product Reviews and Comparisons
Epocoat Guard 82 HS (High Build Zinc Primer)
Epocoat Guard 82 HS is a high-performance zinc-rich epoxy primer designed to protect steel in aggressive environments. It is particularly effective for onshore and offshore structures, pipelines, and refineries. This primer offers excellent corrosion resistance and can be used on bare steel, galvanized steel, or steel coated with other primers. Its key features include compliance with SSPC paint 20 level and the ability to dry at temperatures down to -10 degrees.
Epocoat Build 150 (High Build High Solid Epoxy Mastic Coating)
Epocoat Build 150 is a versatile, high-solid epoxy mastic coating pigmented with glass flake. It is designed for use in areas where optimal surface preparation is not possible, making it ideal for coastal and industrial environments. Its excellent corrosion resistance and ability to be used as a primer, midcoat, or finish coat make it a highly effective maintenance coating.
Epocoat Hardtop GX (High Solid Aliphatic Polyurethane Marine Paint)
Epocoat Hardtop GX is a durable aliphatic polyurethane coating known for its outstanding exterior weather resistance and gloss retention. It is suitable for a wide range of applications, including topsides, decks, offshore structures, and industrial facilities. The paint’s resistance to chemicals and oils, along with its easy application and cleaning properties, make it a top choice for protective coating systems.
Epocoat Alkyd Gloss
Epocoat Alkyd Gloss is a premium, full-gloss paint formulated with high solids alkyd resin. It offers good gloss retention and heat resistance, making it suitable for both interior and exterior surfaces. Recommended for offshore use on engines, topsides, decks, and industrial structures, this paint can be applied over existing alkyd, epoxy, and polyurethane coatings.
Frequently Asked Questions (FAQs)
1. What is the difference between topside and bottom paint?
Topside paint is used above the waterline and focuses on UV protection and aesthetics, while bottom paint (antifouling) is used below the waterline to prevent marine organism growth.
2. How often should marine paint be reapplied?
The frequency of reapplication depends on the type of paint, environmental exposure, and usage. Typically, antifouling paints require reapplication every 1-2 years, while topside paints can last longer with proper maintenance.
3. Can I apply marine paint over existing paint?
Yes, but it is crucial to ensure the existing paint is compatible and properly prepared. Sanding and cleaning the surface will help with adhesion.
4. What safety measures should I take when applying marine paint?
Always use personal protective equipment (PPE) such as gloves, masks, and goggles. Ensure proper ventilation in confined spaces and follow the manufacturer’s safety guidelines.
5. Are there eco-friendly marine paints available?
Yes, there are eco-friendly options that minimize environmental harm. Look for paints with low VOCs and those free from harmful biocides.
Related Article
10 Essential Tips for Choosing the Right Marine Paint for Your Boat
What is Marine Paint Used for?
Conclusion
For high-quality marine paints and professional advice, Contact Epoxy Oilserv Nigeria Limited. Enhance the durability and appearance of your marine structures with our range of top-performing products.
